MAGNESIA-ZIRCONIA POWDER

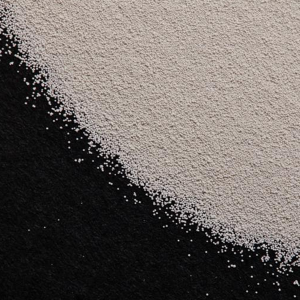

Using our own technique, we are the only manufacturer of yellow magnesia-zirconia structural ceramic material (Mg-PSZ) in China. This series have both the original powder (MZ01) and spray granulation powder (MZ02) to meet different customer’ needs. It’s best used for textile ceramic pieces, high temperature steam valves, wire drawing dies, pulley cone, thermocouple protection tubes, oil pipelines, oxygen probe protective tube, etc.

CHEMICAL COMPOSITION

PHYSICAL PROPERTIES

Sintered Density:        5.75 g/cm3

Vickers Hardness:    1275 Mpa

Fracture Strength (K1C):6.8 MPa x m1/2

Sintering Shrinkage:    19%

Sintering Temp:         1700°C

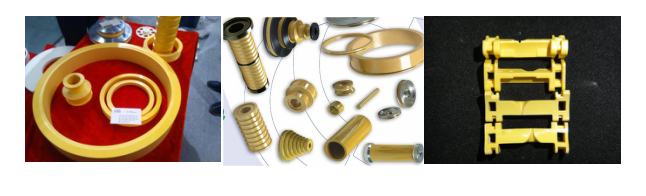

APPLICATION
